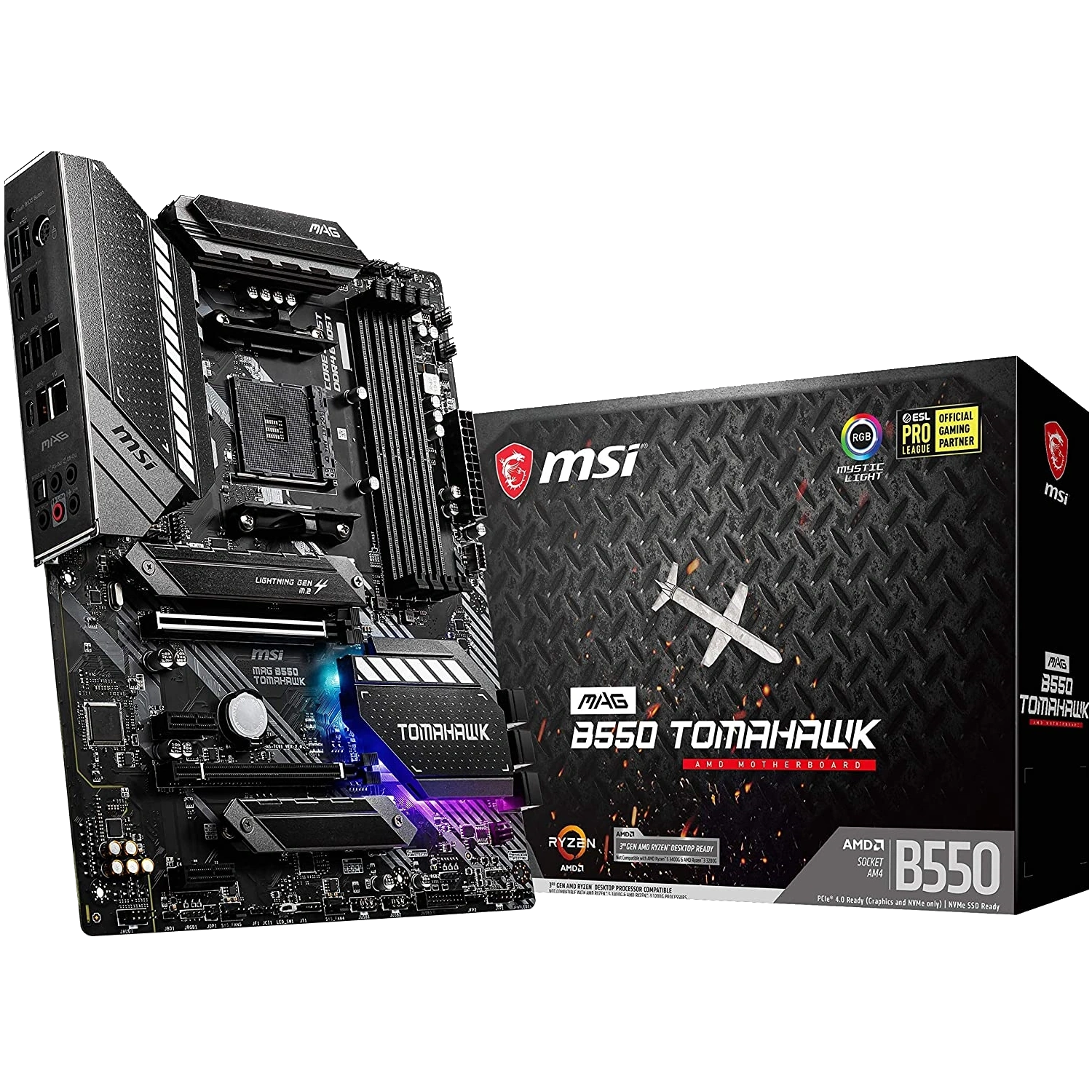

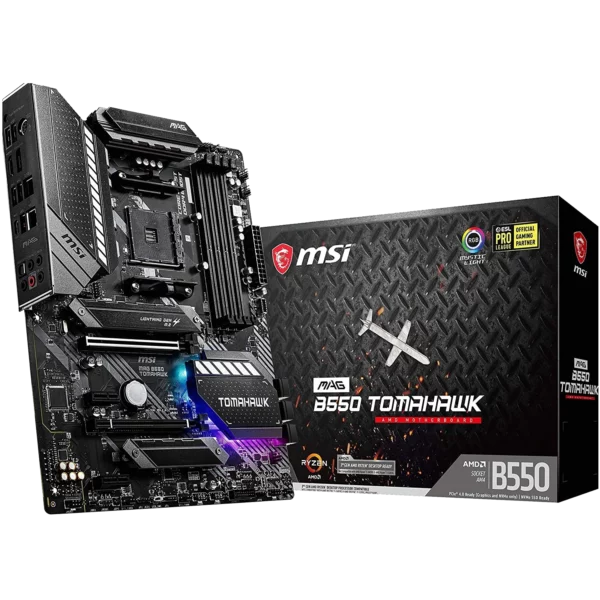

MSI MAG B550 TOMAHAWK
MSI MAG B550 TOMAHAWK
Les cartes mères de la série MAG (dont MSI MAG B550 TOMAHAWK) sont le résultat de tests de qualité rigoureux et ont été pensées pour devenir des symboles de robustesse et d’efficacité. Les cartes mères MSI MAG proposent un processus d’installation simplifié associé à une interface utilisateur conviviale.
239,95€
Rupture de stock
En Stock
Description MSI MAG B550 TOMAHAWK
- Support des processeurs AMD Ryzen™ de 3ème génération et des futurs processeurs AMD Ryzen™ avec mise à jour BIOS
- Support mémoire DDR4 jusqu’à 5100+ MHz (OC)
- Expérience extrêmement rapide avec le support des slots PCIe 4.0, Lightning Gen 4 x4 M.2 avec M.2 Shield Frozr et AMD Turbo USB 3.2 Gen 2
- Refroidissement parfait grâce à un dissipateur plus large, des pads thermiques supplémentaires offrant une conductivité de 7 W/mk et un circuit en cuivre de 2 onces
- Alimentation numérique avec 10 + 2 + 1 phases d’alimentation Duet Rail, un contrôleur PWM numérique et les technologies Core Boost et DDR4 Boost
- Connecteur 2,5 G LAN avec Gigabit LAN et LAN Manager pour une connexion ultrarapide
- Rétroéclairage LED Mystic Light offrant 16,8 millions de couleurs et 29 effets de lumière
- Panneau E/S pré-installé pour faciliter l’installation de la carte et améliorer la protection contre les décharges électromagnétiques
- Audio Boost pour un son de grande qualité
- Support d’un configuration multi-GPU AMD Crossfire™ 2-way sur les slots PCIe Steel Armor
- Garantie commerciale: 3 années constructeur
Fiche Technique MSI MAG B550 TOMAHAWK
Carte mère socket AM4 MSI
Processor
Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update
Chipset
AMD B550 Chipset
Memory 4 x DDR4 memory slots, support up to 128GB
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz by A-XMP OC MODE
1DPC 1R max speed 4866 MHZ
1DPC 2R max speed 3866 MHZ
2DPC 1R max speed 4000 MHZ
2DPC 2R max speed 3600 MHZ
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory
Please refer www.msi.com for more information on compatible memory.
Expansion Slot
1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed
2x PCIe 3.0 x1 slots
The supported specification depends on installed processor.
When installing devices in M.2_2, PCI_E2 & PCI_E3 slots at the same time, PCI_E3 slot will be unavailable, and M2_2 slot only supports PCIe x2.
Multi-GPU
Supports 2-Way AMD CrossFire™ Technology
Onboard Graphics
1x HDMI 2.1 port, supports a maximum resolution of 4096×2160 @60Hz
1x DisplayPort, supports a maximum resolution of 4096×2160 @60Hz
Maximum shared memory of 16 GB
Available for the processor with integrated graphics.
Graphics specifications may vary depending on the CPU installed.
Storage
AMD B550 Chipset
6x SATA 6Gb/s ports
2x M.2 slots (Key M)
M2_1 slot (from AMD Processor)
Supports PCIe 4.0/ 3.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (from AMD B550 chipset)
Supports PCIe 3.0×4
Supports 2242/ 2260/ 2280 storage devices
The supported specification depends on installed processor.
RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
AMD B550 Chipset
3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio
Realtek® ALC1200 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN
1x Realtek® RTL8125B 2.5Gbps LAN controller
1x Realtek® RTL8111H 1Gbps LAN controller
Internal connectors
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
2x 4-pin RGB LED connectors
2x 3-pin RAINBOW LED connectors
1x TPM module connector
1x Clear CMOS jumper
Back panel ports
PS/2 Combo Port
DisplayPort
2.5G LAN Port
1G LAN Port
HD Audio Connectors
Flash BIOS Button
USB 2.0 Port
HDMI Port
USB 3.2 Gen 1 5Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-A + Type-C)
Optical S/PDIF OUT
Dimensions
ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Mounting
9 mounting holes
